Barn Light Size Chart

Barn Light Size Installation Guide/Sizing Chart

Barn light size chart



Recommended Shade Size

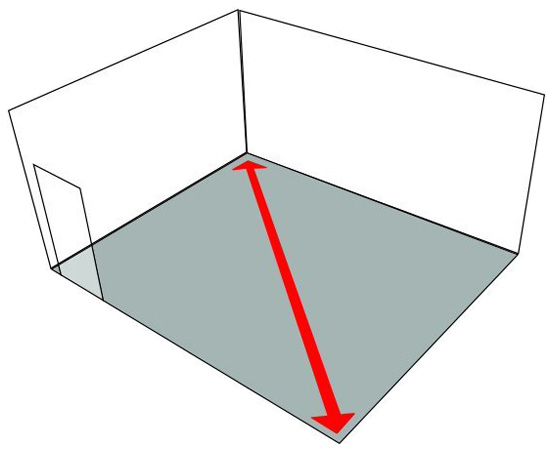

  1. Measure your room diagonally.
  2. Use the chart below to decide which shade would be recommended.
Diagonal Measurement
(in inches)
Recommended Shade Size
200" or less 8" - 10"
200" - 250" 10" - 12"
250" - 300" 12" - 14"
350" - 400" 14" - 16"
350" - 400" 16" - 18"
400" - 450" 18" - 20"
450" or greater 20" - 22"



barn light size chart

Recommended Height for Ceiling Lights

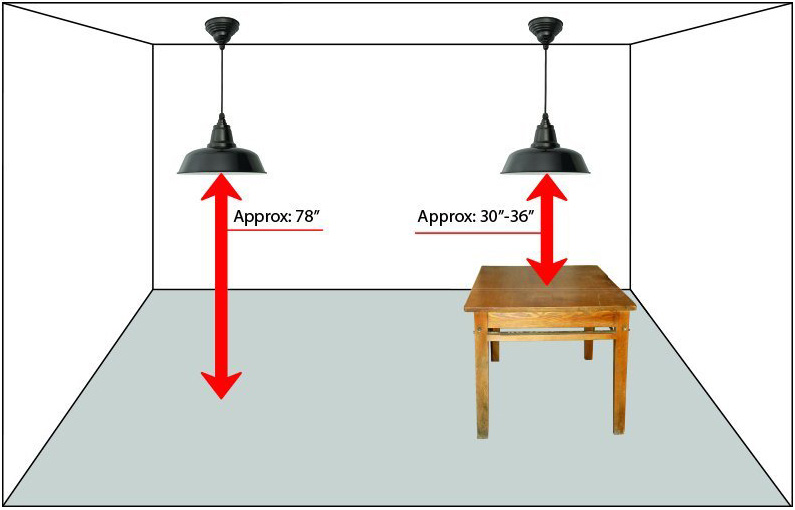

  • In an open room with 8-9 foot tall ceilings, we recommend the lamp base be about 78 inches over the flooring.
  • If being installed over a table or island, we recommend to leave about 30"-36" of clearance between the lamp and the top of the surface.
  • If being installed in a larger room or entryway we recommend to keep it high, but still within eyesight.



Barn Light Illumination Radius Graph

Steps:

  1. Match installation height with the height labeled on top of the chart (Blue section).
  2. Match desired shade size on the left portion of the chart (Green section).
  3. Graph where the two sections meet which will be the radius of the light provided.


Installation Height



3 ft

6 ft

10 ft

13 ft

16 ft

20 ft

23 ft

26 ft

30 ft

33 ft

Shade Size

8”

5 ft radius

10 ft radius

15 ft radius

20 ft radius

24 ft radius

29 ft radius

34 ft radius

39 ft radius

44 ft radius

49 ft radius

10”

5 ft radius

10 ft radius

16 ft radius

21 ft radius

26 ft radius

31 ft radius

36 ft radius

41 ft radius

46 ft radius

52 ft radius

12”

5 ft radius

9 ft radius

14 ft radius

18 ft radius

23 ft radius

27 ft radius

32 ft radius

36 ft radius

41 ft radius

45 ft radius

14”

5 ft radius

9 ft radius

14 ft radius

19 ft radius

24 ft radius

28 ft radius

33 ft radius

28 ft radius

42 ft radius

47 ft radius

16”

5 ft radius

10 ft radius

15 ft radius

20 ft radius

25 ft radius

30 ft radius

34 ft radius

39 ft radius

44 ft radius

49 ft radius

18”

5 ft radius

10 ft radius

15 ft radius

20 ft radius

24 ft radius

29 ft radius

34 ft radius

39 ft radius

44 ft radius

49 ft radius



The Barn Light Installation Guide and Sizing Chart is meant to provide you with an easier understanding of how far the light radius will reach depending on the size you have purchased and the height you are planning to install the barn light.

Vertically, on the left side of the chart we have our various barn light shade sizes. Horizontally, on the top of the chart we have various heights for installation.

For example, if you purchased a Barn Light with an 8” shade and you are planning to install the light 3 ft above the ground and / or nearest surface, then you can expect the actual light rays to reach about a 5 ft radius.

Another example, if you purchased a Barn Light with a 14” shade and you want to install it 16 ft above the nearest surface, then you can expect about a 24 ft radius of light.

PLEASE NOTE: This chart is meant to be a simple guide to better help understand what to expect on the light radius and is NOT intended to provide EXACT measurements of the actual light rays themselves.
